2555 Nostrand Avenue, Midwood — A Black Anodized Wide-Stile Door for a Bathroom, Step by Step
What This Page Is
This is an Office News case study: a job written up as it happens rather than after it is finished. Each visit adds an entry to the log below with what we found, what we decided and why. When the door is in, the page becomes the record of how it got there. Nothing here is tidied up after the fact.
The Job

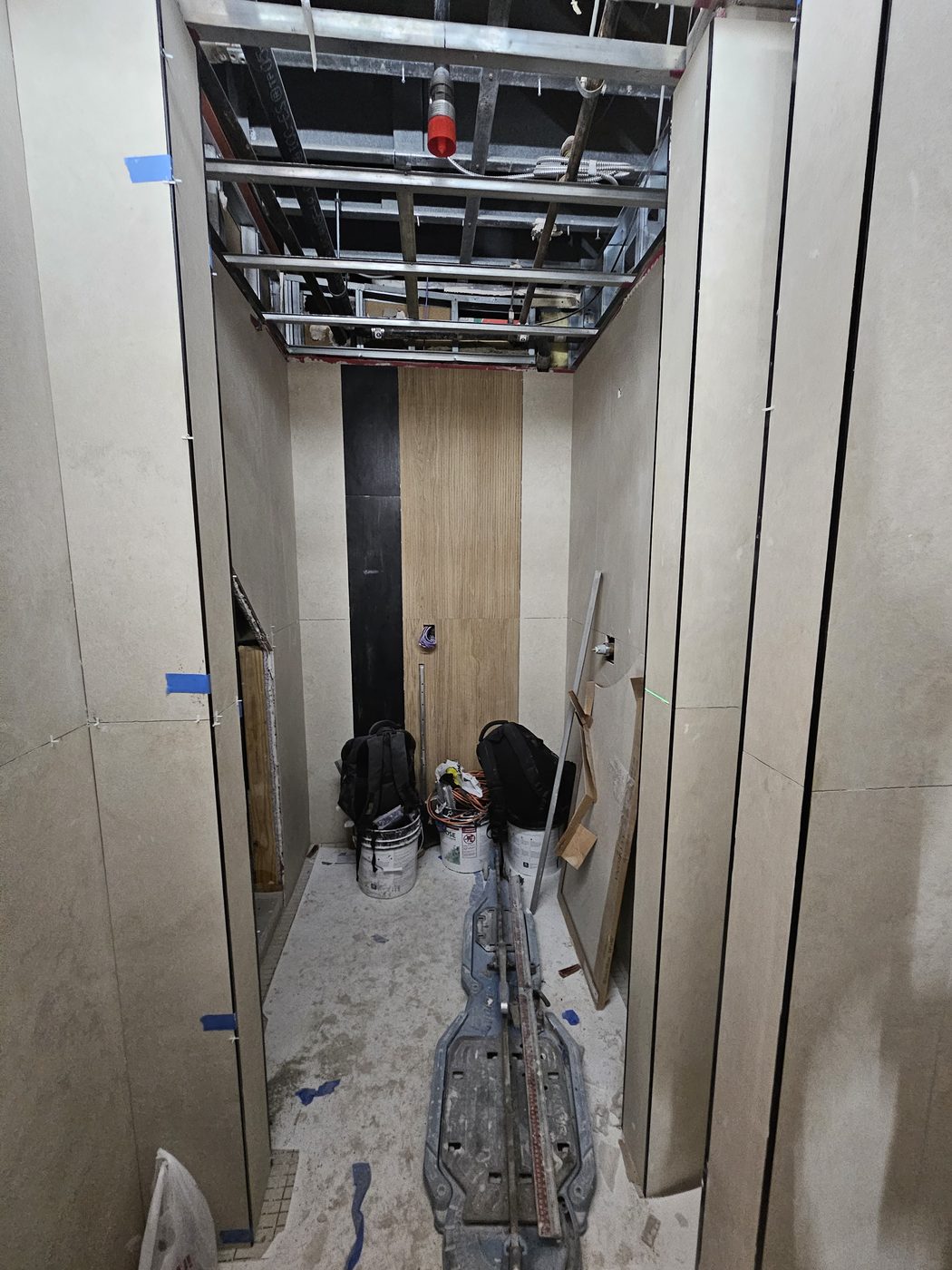

A commercial interior fit-out on Nostrand Avenue in Midwood, where a bathroom is being finished in large-format porcelain panels — walls clad floor to ceiling in slabs, with a black-and-oak feature wall at the end of the corridor. The client wants a black anodized wide-stile aluminum door to close the bathroom, matching the black edge trims on the porcelain. Alex GC is supplying and installing the door.
Why a Wide-Stile Door
Aluminum doors come in narrow, medium and wide stile, which is the width of the vertical frame member either side of the glass or panel. Narrow stile is the storefront look; wide stile — typically around five inches — is the commercial and institutional choice, and it is the right one for a bathroom door in a fit-out for three reasons: the stile is wide enough to take a mortise lock and a closer without notching, it takes daily use without racking, and it gives a solid margin around whatever infill the door carries. Black anodizing rather than a painted finish means the colour is in the metal, so a scuff does not show as bare aluminum.
Project Log
7 October 2026 — Doors installed
Where the job is: the ceiling is closed, the lights are in and the mosaic floor is down. The scope grew from one door to two: a narrow door and a wide one, side by side, with a black feature panel between them.
What we did: set both frames flush with the porcelain faces and hung the doors. Each is a black anodized wide-stile door with a full-height lite of white laminated glass, chosen for safety, an offset pull handle and a custom lock with an indicator that shows whether the room is occupied or available. Both have a finger guard on the hinge side, a pleated strip that covers the gap between door and frame so that it cannot trap a hand; see finger guard in our glossary for a video of it working on this door.
What we found: the frames went into the openings as measured in September. Measuring between the finished porcelain faces, not from the drawing, is what made that possible.
Next: the blue protective tape comes off, the closers get their final adjustment, the glass and frames are cleaned, and the doors are handed over.
10 September 2026 — Site survey for the door opening

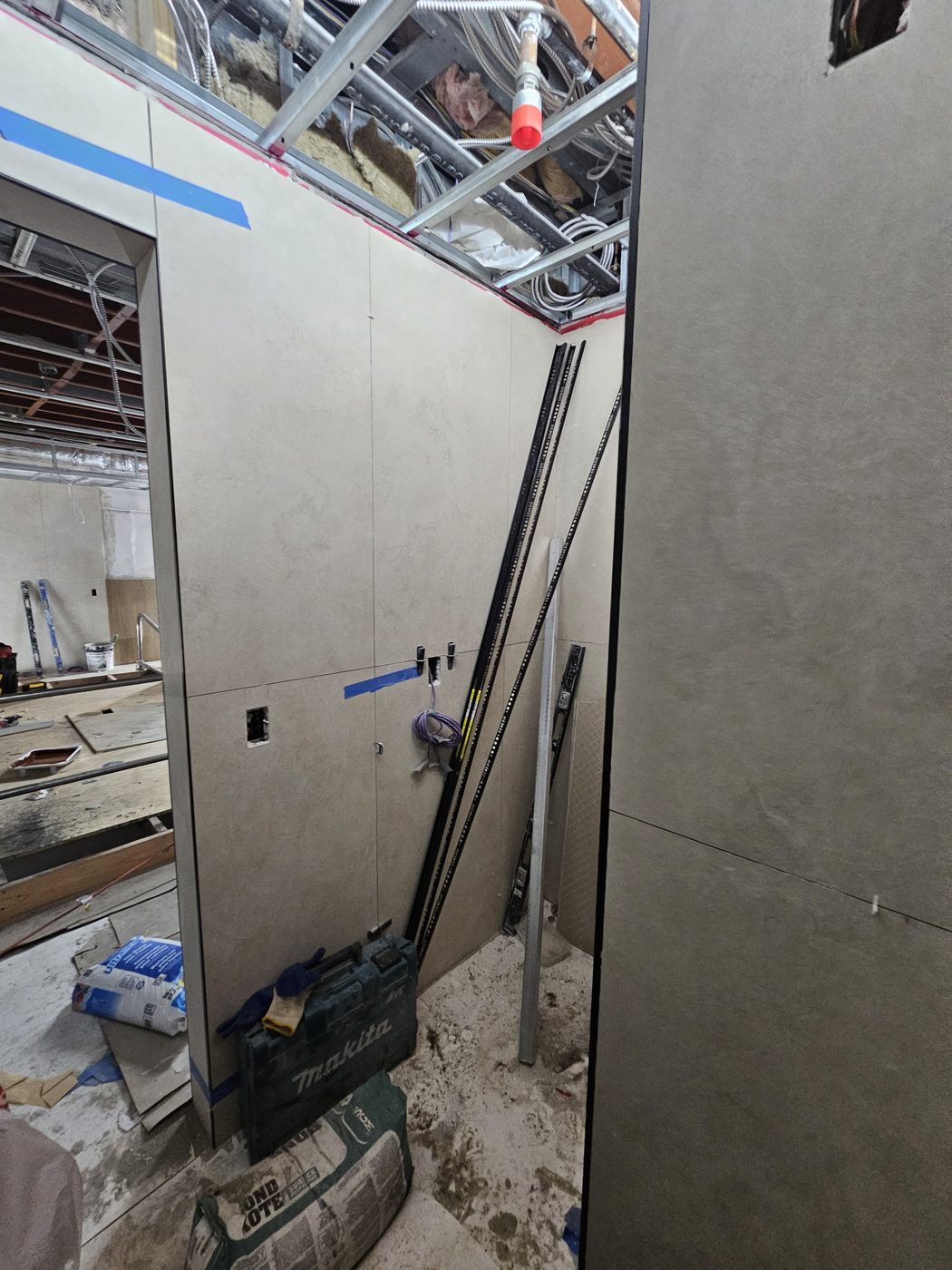

Where the job is: the porcelain wall panels are set on the corridor and the bathroom walls and the tile clips are still in; the ceiling grid is up but open, with the mechanical and electrical runs exposed above it. The door opening is framed and clad on its jambs and head.

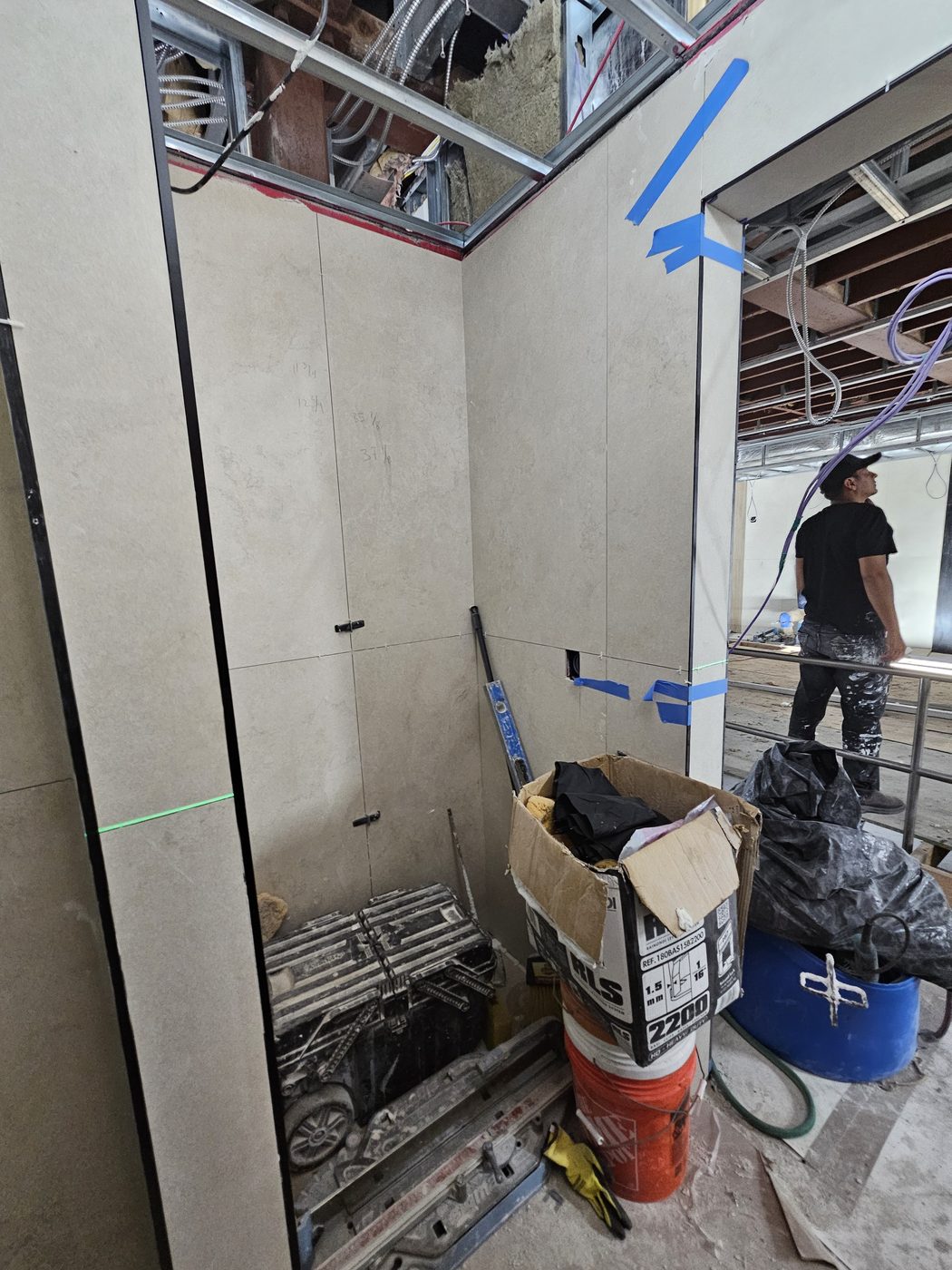

What we did: measured the opening for the door. On a job like this the opening is not the stud opening, it is the finished opening between the porcelain faces, and it is taken after the panels are on, not before. We took width at the head, mid-height and sill and height at both jambs, checked the jambs for plumb and the head for level, and recorded the depth of the finished reveal so the frame lands flush with the panel face on the corridor side.
The decision: the door will be fabricated to the smallest of the measured widths and heights, with the clearance the hardware needs, rather than to the drawing dimension. The porcelain panels have set the opening; the door has to fit them, not the other way round. Frame and door go to fabrication in black anodized finish; the closer and lock are specified for the wide stile.
Next: fabrication, then installation once the ceiling is closed and the floor finish is down, so the door is not on site while the trades that break things are still working.
One more entry will be added above at close-out. The finished job is written up in our portfolio: 2555 Nostrand Avenue, Midwood.
Site Photographs
Installation, October 2026.
Site photographs from the survey visit, 10 September 2026.
